Search email threads from your Gmail account. Members can connect their own accounts, or an administrator can index Google Workspace mailboxes with a service account. In either case, each mailbox stays private to its owner.
Admin setup uses your organization's Settings → Sources page. Teammates connect from Integrations in the main sidebar.
Choose your setup
| Method | Use it when | What teammates do |
|---|---|---|
| Member accounts | Each person should authorize their own Gmail account. | Connect the Google account matching their verified Studio email. |
| Service account | A Google Workspace administrator can authorize a central mailbox crawl. | Join the Studio organization with their matching verified primary Workspace email; no personal Gmail connection is needed. |
These are alternative setup paths. When only a central Gmail source is configured, Integrations does not offer a personal Gmail Connect action. Existing member-account sources keep their connection actions.
Central indexing does not make email searchable by the administrator, other recipients, or the rest of the organization. Mailbox delegation and shared-mailbox access are not mirrored; only the mailbox owner's verified email grants Search access.
Connect member accounts
Allow Gmail
An admin selects Settings → Sources → Add source → Gmail, chooses Sync using → Member accounts, sets any filters, and selects Set up member accounts.
Connect your account
Join the Studio organization, then open Integrations and select Connect for Gmail. Authorize the Google account matching your verified Studio email. The default filters cover the last 6 months across all labels, excluding Promotions, Social, Spam, and Trash. Its row shows your connection and indexing status.
Google asks for permission to manage and send mail because this account connection also supports Studio workflow actions. Search only reads mail. The central service-account path uses read-only mail access.
Adjust filters if needed
An admin opens Settings → Sources → Gmail, selects the connection, then selects the connection's Settings tab. Change Labels, Date Range, or other filters and save.
One member-account configuration is usually enough. Its filters apply to every account enrolled in it, including accounts connected later. Connect service account starts central indexing; edit the existing connection to change its filters.
Connections are additive: a narrower one does not restrict an existing broader one, and overlapping connections can index the same thread more than once. For one organization-wide policy, edit the existing connection.
Admins can request member connections from Settings → Sources → People → Request connections (filter by the integration first). These requests do not invite recipients to the Studio organization. See Connect your account for the shared connection and recovery steps.
Set up a central service account
Open Settings → Sources → Add source and select Gmail. This opens Connect Gmail service account. To add another connection later, open Gmail from the Sources list and select Connect service account.
This requires Google Workspace and a Workspace super administrator to authorize delegation. Consumer Gmail accounts cannot use this path. Each selected user must have Gmail enabled.
Create the Google service account
In Google Cloud Console, select your project and enable Gmail API and Admin SDK API under APIs & Services → Library. Open IAM & Admin → Service Accounts → Create service account, name it, and finish creation. Google Cloud project roles do not grant access to Workspace mailboxes and are not required for this crawl.
Open its Keys tab and select Add key → Create new key → JSON → Create. Store the downloaded key securely. See Google's key creation guide.
Authorize domain-wide delegation
Open the service account's Details → Advanced settings and copy its numeric Client ID. In the Workspace Admin Console, sign in as a super administrator and open Security → Access and data control → API controls → Manage Domain Wide Delegation → Add new.
Enter the Client ID and these exact scopes, separated by a comma:
https://www.googleapis.com/auth/gmail.readonly,https://www.googleapis.com/auth/admin.directory.user.readonlySelect Authorize, then View details to confirm both scopes were saved. If the same client also indexes Drive or Calendar, retain those services' required scopes. These Gmail crawl scopes do not allow sending or modifying mail.
If your organization requires multi-party approval, another super administrator must approve the request. Delegation can take up to 24 hours to propagate. See Google's delegation guide.
Configure Gmail in Studio
Under Service account, select Add service account, paste or upload the JSON key, and select Add service account to save it. You can also choose an existing service account. Set Directory administrator email to an active Workspace administrator who can read users in the Directory API. This account supplies directory access; each mailbox is read using that mailbox owner's delegated identity.
Keep the default Date Range of Last 6 months, or adjust it and Labels. Use label names or system IDs such as INBOX; mailbox-specific Label_… IDs are not supported. A label that does not exist in one mailbox simply matches no threads there.
Under More options → Users, enter up to 100 primary Workspace email addresses, or leave blank for all active users in the same Workspace customer, including secondary domains. Suspended, archived, and guest users are excluded. Select Connect & Sync. Studio validates the directory administrator and selected users, then checks Gmail access for a sample user before saving.
Invite teammates through Settings → Members → Invite, using their primary Workspace emails. They accept, sign in with those matching verified emails, and search from Home or Search. They do not need to connect personal Google accounts for this source.
Source options
An admin opens Settings → Sources → Gmail to open its configuration list. Each row shows Member accounts or Service account beside its sync status. Open a connection's Settings tab to edit its filters, then select Save. Filters apply separately to each mailbox in the connection. Documents shows indexed threads and Sync history shows recent runs.
Sync using identifies the configuration's fixed connection method. To replace a central credential, choose another Service account and select Change service account.
| Option | Behavior |
|---|---|
| Labels | Optional comma-separated names or system IDs, such as Engineering, INBOX. A thread matching any listed label is included. Leave empty for all labels. Custom IDs such as Label_7 belong to one mailbox and cannot be used for member or central setup. |
| Directory administrator email | Required for central indexing. An active Workspace administrator who can read Directory users; this does not limit the crawl to the administrator's mailbox. |
| Users | Central indexing only. Optional primary Workspace email addresses (up to 100); blank includes all active users in the customer. This selects which mailboxes to crawl. Each mailbox remains searchable only by its owner. |
| Date Range | Last 6 months (180 days) by default. Other options are rolling windows of 7, 30, or 90 days, 1 year (365 days), or all time. |
| Exclude Promotions / Exclude Social | Both enabled by default. Choose No to include either category. |
| Search Filter | Optional Gmail query, such as from:team@example.com subject:release. This filters what is indexed; it is not a Studio Search query. Member-account sources with a search filter relist the mailbox on every sync instead of using Gmail's change history. |
In the add-source form, More options also contains optional Metadata tags.
What gets indexed
Studio indexes the message text Gmail returns for each matching thread, plus subjects, senders, dates, and labels. Filters select threads; messages within a selected thread are not filtered again. HTML email is converted to text. Results link back to Gmail.
File attachments and image contents are not indexed. Thread discovery uses Gmail's default exclusion of Spam and Trash. A filter such as has:attachment selects the email thread; it does not index the attachment. Gmail API filtering also differs from Gmail's interface for aliases and thread-wide searches. See Google's thread listing reference and filtering guide.
Search schedules syncs hourly. The first sync lists every thread in scope and can take several runs for a large mailbox; results appear as documents are indexed.
Member accounts: later syncs use each mailbox's Gmail change history, unless the configuration has a search filter. A full relisting runs about weekly, or sooner if Gmail no longer retains the saved history.
Service account: each sync revisits the selected active mailboxes and resumes unfinished listings. A failed mailbox read leaves the crawl incomplete; it does not cause existing indexed mail to be deleted from Search.
Updates, removals, and access refresh in the background. Empty mailboxes and filters with no matches complete normally with zero documents. Threads exceeding indexing size limits are skipped and reconsidered when they change.
Troubleshooting
| What you see | What to do |
|---|---|
| A different email is requested | Use the Google account matching your verified Studio email. A separate personal account or alias does not satisfy the match. |
| No searchable documents | Check the source's labels, date range, category exclusions, and search filter. Allow the first sync to finish. |
| Finish connecting in the other tab | Complete the Google flow, or use Open again while authorization is pending. If the popup was blocked or closed, allow popups and select Connect again. |
| Reconnect | Click Reconnect and authorize the same account again. |
| Unavailable or needs admin attention | Ask your Studio admin to check source status and the deployment's Google OAuth configuration. |
| Directory or delegation error | Check both central crawl scopes, the service-account key, and the Directory administrator's user-read privileges. A normal OAuth account cannot replace the central service account. |
| Gmail access fails for a selected user | Verify delegation is authorized and Gmail is enabled for that primary Workspace account. Set Users to accounts with Gmail enabled; leaving it blank includes all active users and can stop sync on a service-access error. Aliases and external accounts cannot be selected. |
| A central source indexes mail but a teammate sees no results | Confirm their verified Studio email is the mailbox's primary email and they belong to the Studio organization. Administrators do not receive other people's mailbox access. |
Self-hosted operator setup
For an External app in Testing, Google refresh tokens for these scopes expire after seven days. Before production use, configure the appropriate publishing status and complete any required verification; adding test users alone does not make a durable production connection. See Google’s token expiration rules.
Member-account connections use the deployment's Google OAuth client below. Central service-account indexing uses the separate setup above and does not require each user to complete OAuth.
- In Google Cloud Console, select your project. Open APIs & Services → Library, find Gmail API, and enable it.
- Open Google Auth platform → Branding. Select Get started if needed, then enter the app name, support email, and contact email. Under Audience, use Internal only for an app limited to your Google Workspace organization; otherwise use External and add test users while testing. Review the app's permissions under Data Access → Add or remove scopes, using the current Studio scopes below. Follow Google's consent and verification guidance for your audience.

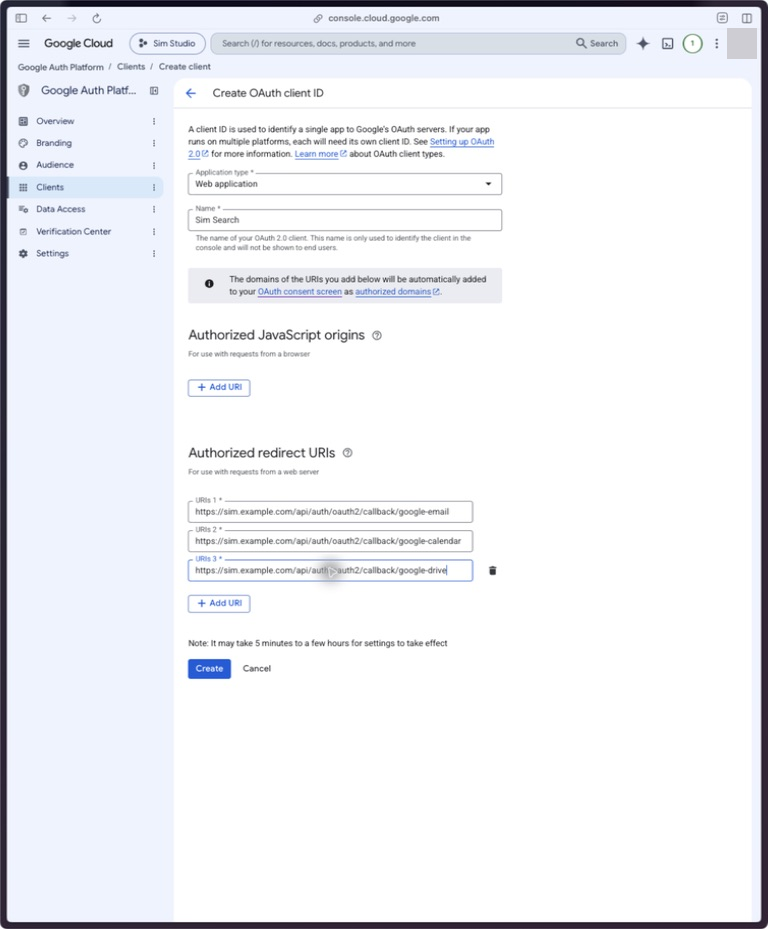

- Open Google Auth platform → Clients → Create client. Choose Web application, give the client a name, and add the URI below under Authorized redirect URIs. If this instance already has a Google client, add this URI to that client instead. See Google's credential setup.
- Save the client ID and secret as
GOOGLE_CLIENT_IDandGOOGLE_CLIENT_SECRET. SetNEXT_PUBLIC_APP_URLto the same Studio origin used in the callback, then restart Studio. See Integrations & OAuth. If you change an existing deployment's OAuth client or scopes, an organization admin selects Settings → Sources → More → Update sign-in settings, then affected teammates reconnect.
https://<your-studio-domain>/api/auth/oauth2/callback/google-emailThis Google Cloud example uses one client for all three services. Replace https://studio.example.com with your Studio origin and add only the callbacks for services you enable.
The member-account OAuth connection uses these scopes:
openid
https://www.googleapis.com/auth/userinfo.email
https://www.googleapis.com/auth/userinfo.profile
https://www.googleapis.com/auth/gmail.modify
https://www.googleapis.com/auth/gmail.send
https://www.googleapis.com/auth/gmail.labelsGoogle's gmail.readonly scope is sufficient for Search's email reads and is used by the central service-account path. Member-account connections share their OAuth credentials with workflow actions and require the broader set above. Search does not send or modify email. See Google's scope descriptions.
